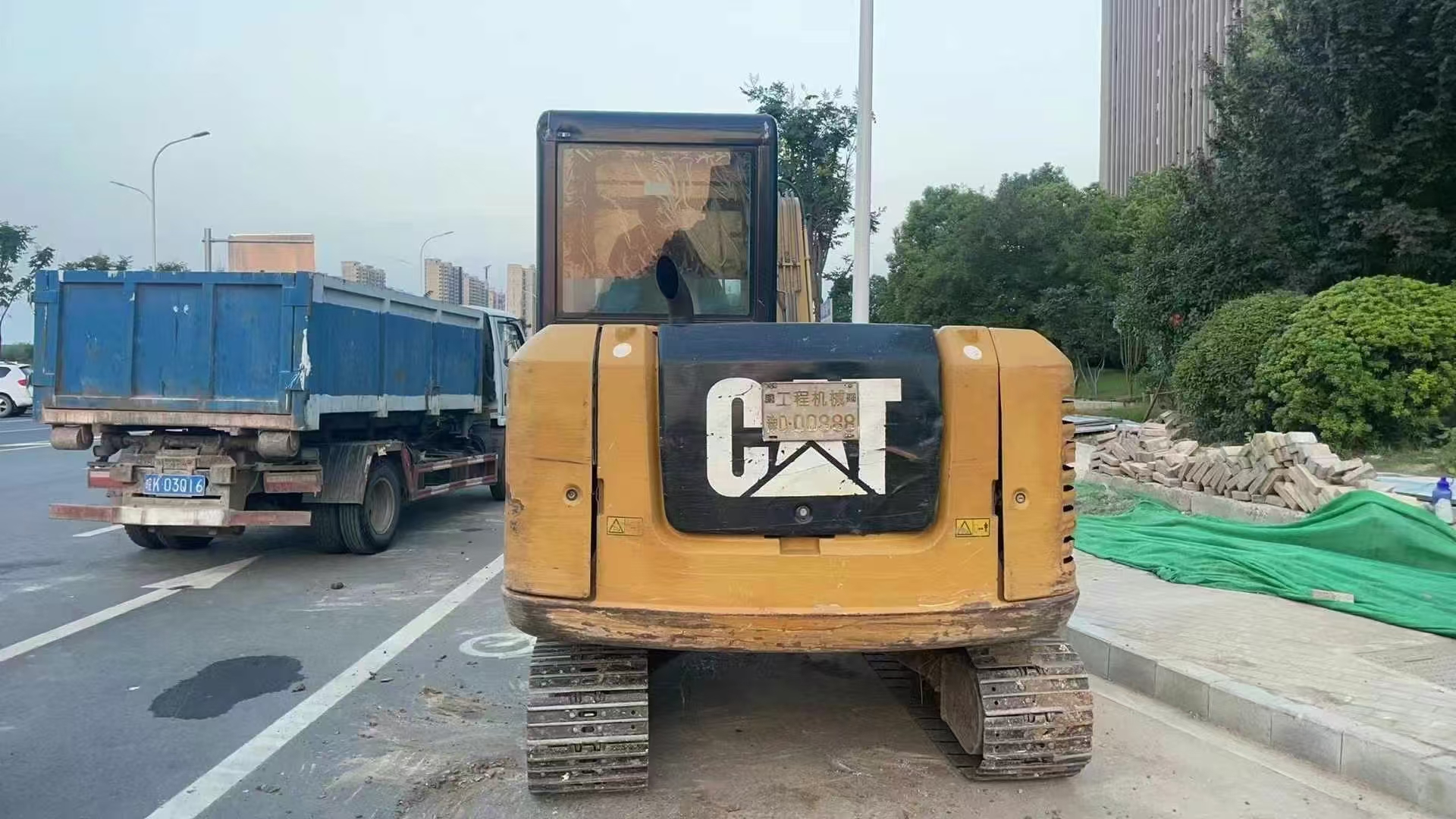

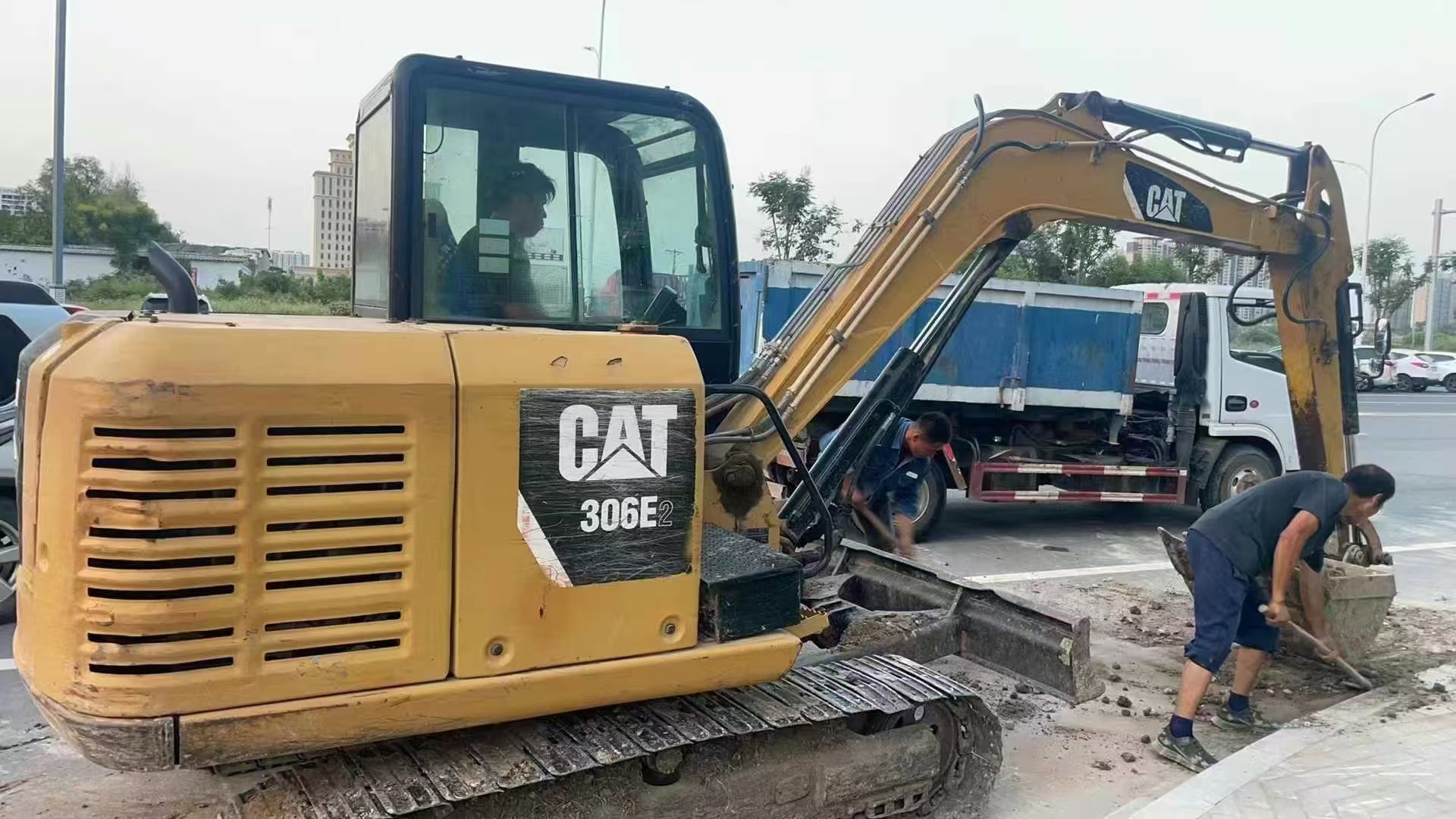

Caterpillar306E2

Tonnage (tons) 6
Machine operating weight (kg) 5800
Bucket width (mm) 834
Bucket capacity (m³) 0.25
Boom length (mm) 3200
Arm length (mm) 1650
Performance
Slewing speed (rpm) 10.5
Slewing torque (Nm) 14.2
Travel speed (km/h) 4.3
Gradability (%) 25
Bucket digging force (kN) 39
Arm digging force (kN) 28
Power system

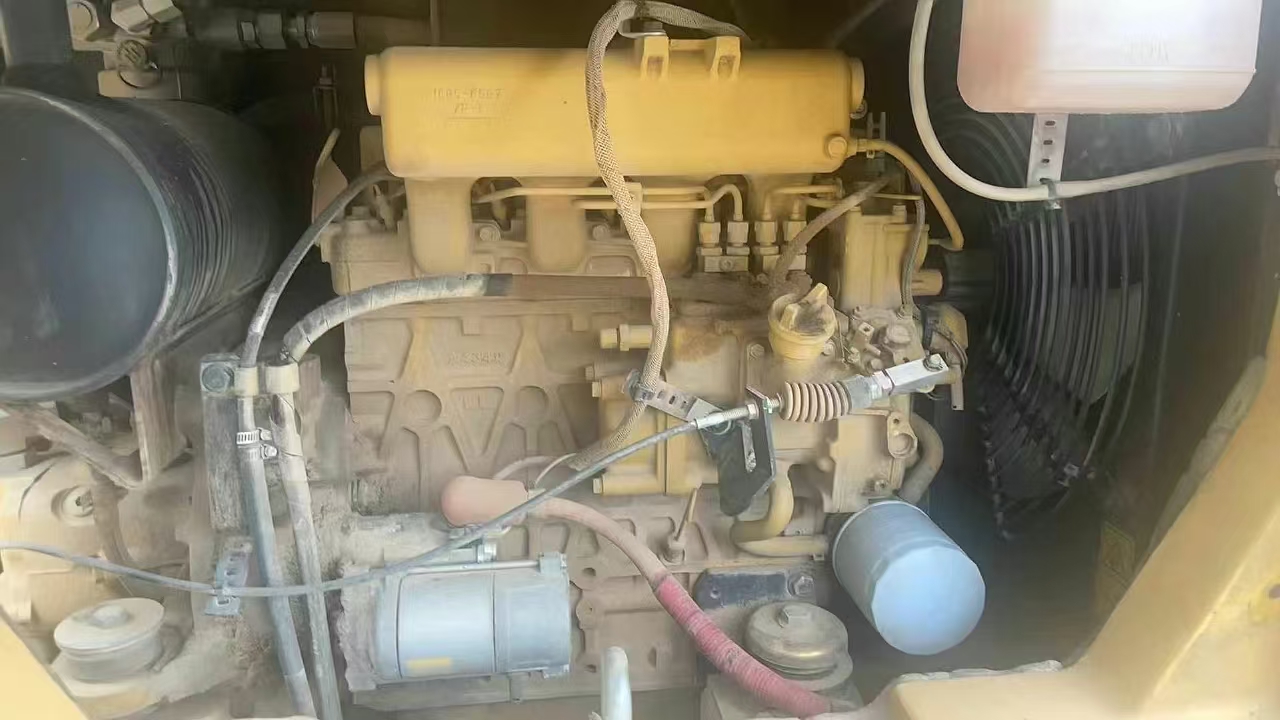

Engine model Cat C2.4 (DI Turbo)
Rated power (kw/rpm) 34.7 (47.2 hp)
Displacement (L) 2.4
Bore × stroke (mm) 87 mmx102.4 mm
Oil capacity
Fuel tank (L) 78
Hydraulic oil tank (L) 58
Hydraulic system (L) 85
Engine oil change (L) 9.5
Coolant (L )8.3
Main dimensions
Total transport width (mm) 1950
Total track length (mm) 2440
Track shoe width (mm) 400
Rear end turning radius (mm) 1580
Operating range
Maximum digging radius (mm) 6090
Maximum digging depth (mm) 3870
Maximum digging height (mm) 5530
Maximum unloading height (mm) 3900
