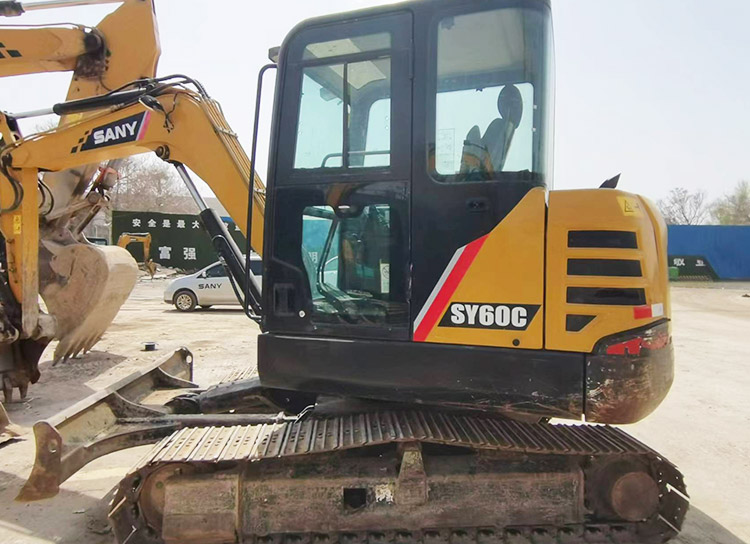

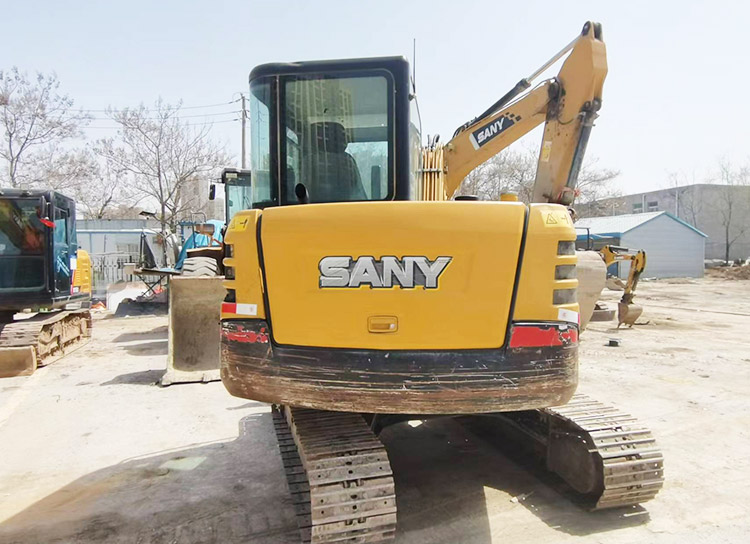

SANY SY60C mini excavator is used for garden construction, farm and other work.
SANY SY60 is a small excavator. It uses Isuzu and Kubota engines with a power of 36KW and has good power and economy. Adopting well-known hydraulic system, it has strong power and improves work efficiency. The boom, stick, and bucket are all made of thickened and wear-resistant steel plates to extend the life of the machine and adapt to more working conditions.
| main parameters | Total Weight | bucket capacity |
| 6000kg | 0.25m³ | |
| power | ||
| 36kw | ||
| Specification | Total Weight | bucket capacity |
| 6000kg | 0.25m³ | |
| engine | Kubota V2607 | rated power |
| 36kw | ||
| Maximum torque | engine displacement | |
| 206.9N·m/rpm | 2.615L | |
| performance | Gradeability | Swing speed |
| 70%(35°) | 10.3rpm | |
| Ground pressure | Bucket digging force | |
| 31kPa | 45kN | |
| Arm crowa force | Walking speed | |
| 33kN | 4.1/2.4km/h | |
| drive | Standard track | Support sprocket on each side |
| 400mm | 1 | |
| Roller on each side | ||
| 5 | ||
| Oil and coolant capacity | Final Drive | Diesel tank |
| 2×0.9L | 125L | |
| Hydraulic tank | oil tank | |
| 85L | 9.6L | |
| water tank | ||
| 6.5L |
If you need our products please write down any questions, we will reply as soon as possible.
