Rated load (tons) 5-6 tons
Rated load (kg) 5000
Operating weight of the whole machine (kg) 17400
Bucket capacity (m³) 3.0 (2.7-4.0)
Maximum-unloading height (mm) 3126
Unloading distance (mm) 1140
Digging force (digging force) (kN) 175

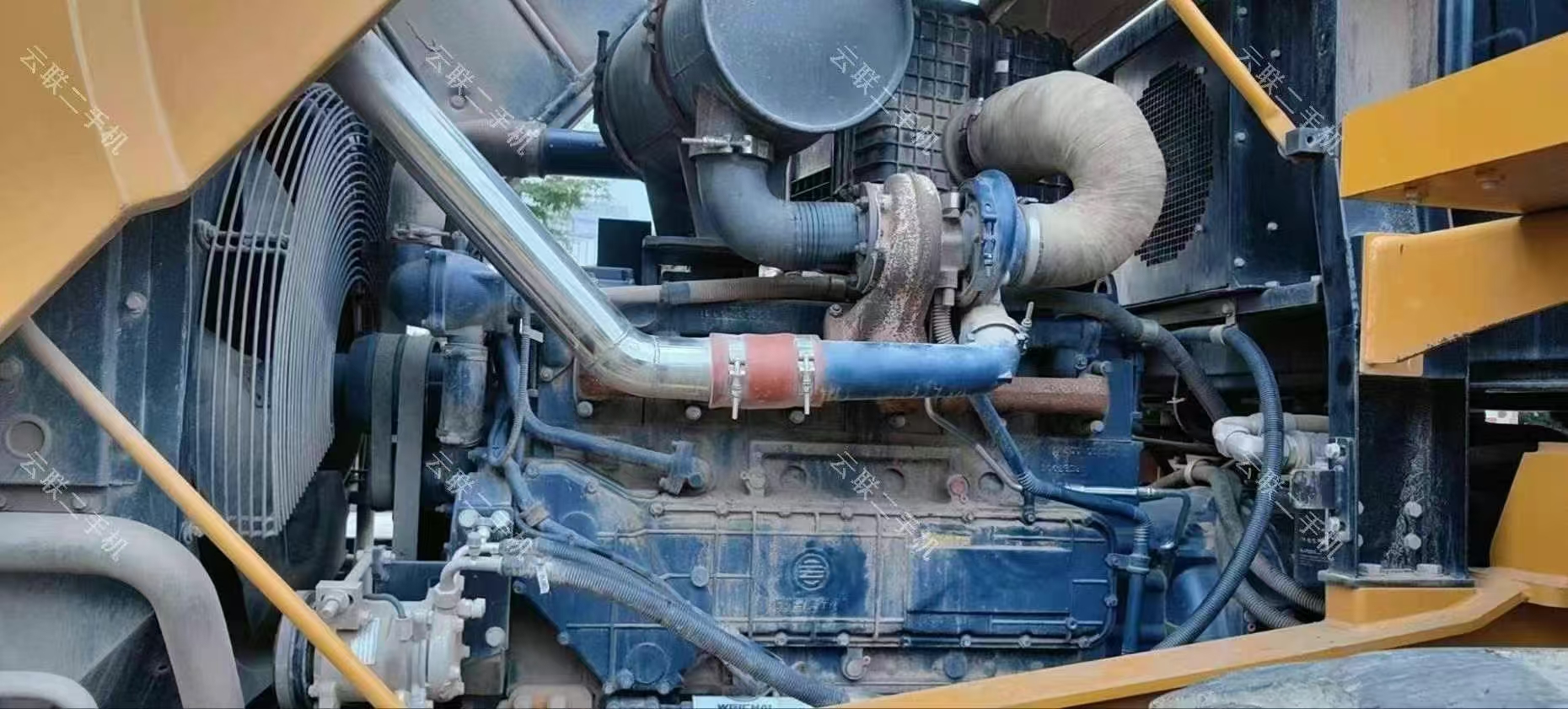

Engine
Engine model Weichai WP10G220E343
Rated power (kw/rpm) 162/2000
Oil capacity
Fuel tank (L) 30 0
Hydraulic oil tank (L) 220
Gearbox
Gearbox brand and model 6-ton planetary gearbox
Travel speed 1st gear (km/h) 13
Travel speed 2nd gear (km/h) 40
Drive axle
Drive axle model Meritor heavy-duty
Working device action time
Three items and (s) 10.5
Technical parameters
Maximum traction (kN) 180
Overall machine size
Overall machine length (mm) 8152
Overall machine width (mm) 3000
Overall machine height (mm) 3560
Wheelbase (mm) 3200
