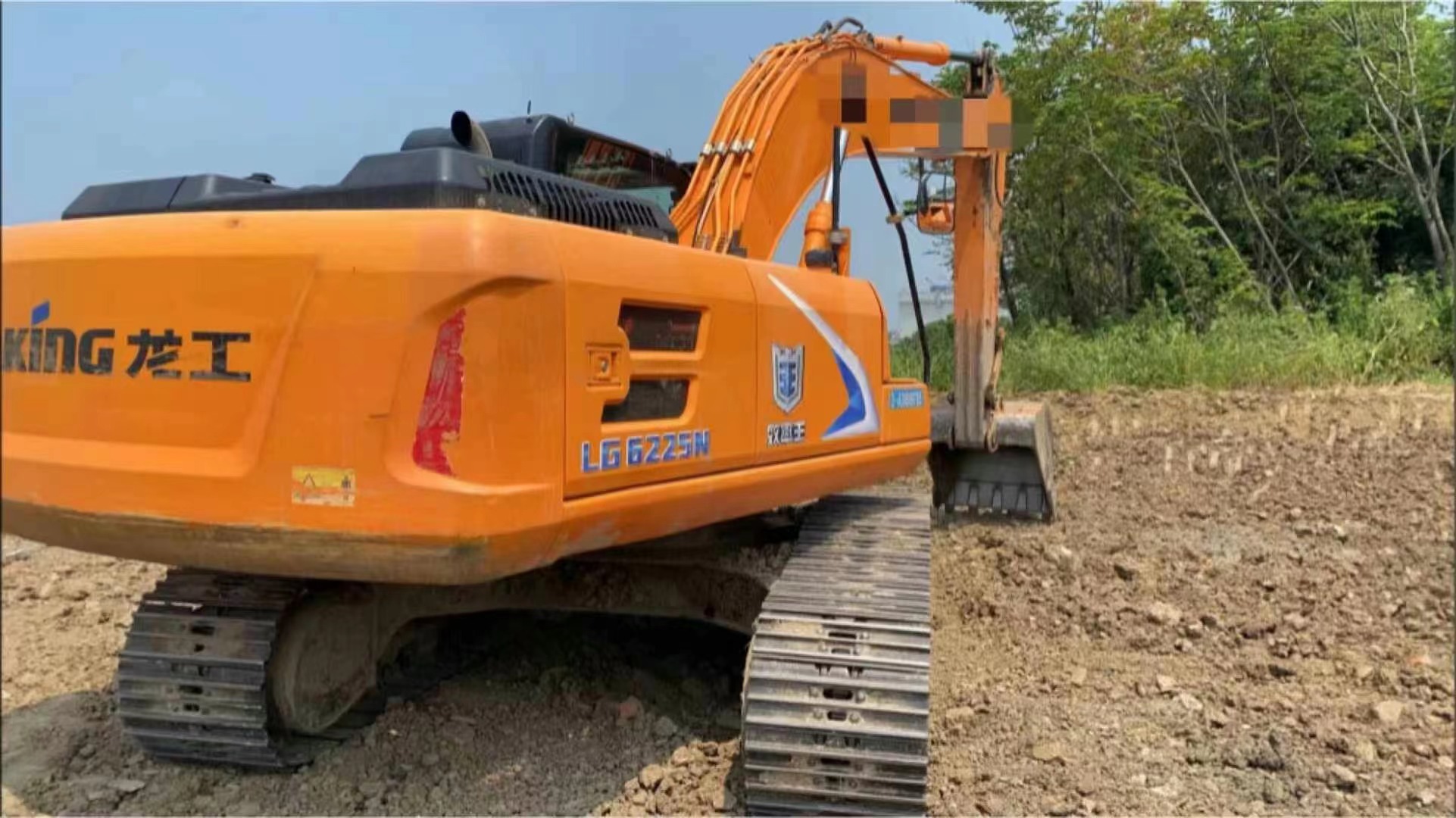

LONKING 225

Tonnage (tons) 22
Machine operating weight (kg) 21800
Bucket capacity (m³) 1.1
Boom length (mm) 5675
Arm length (mm) 2920
Performance
Slewing speed (rpm) 11.6
Travel speed (km/h) 3.33/5.54
Gradability (%) 70/35°
Ground pressure (Kpa) 51
Bucket digging force (kN) 128
Arm digging force (kN) 99
Power system

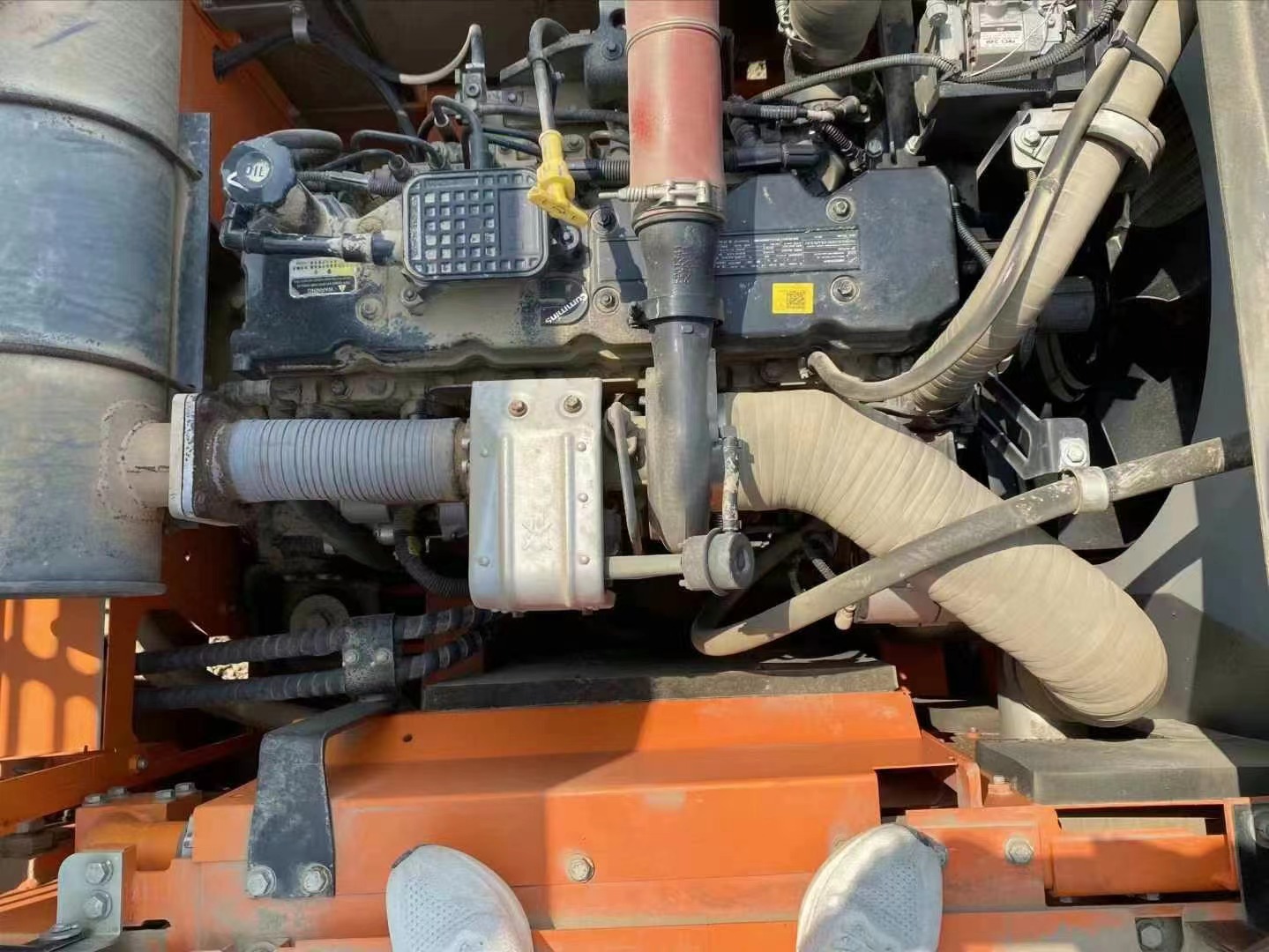

Engine model Cummins 6BTAA5.9-C150
Rated power (kw/rpm) 112/1950
Displacement (L) 5.9
Number of cylinders (pieces) 6
Cooling method Water cooling
Hydraulic system

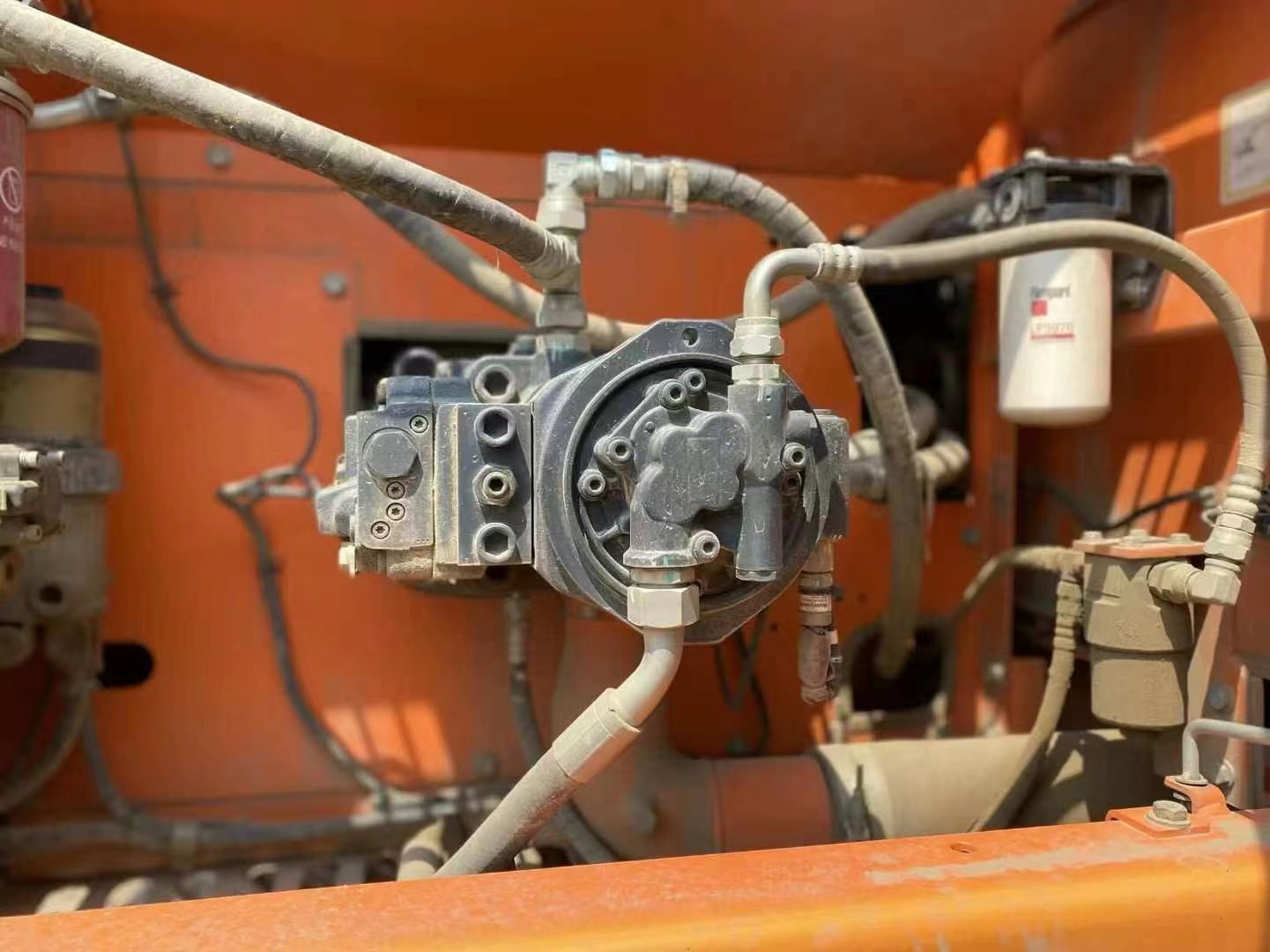

Maximum flow of main pump (l/min) 208×2
Main overflow set pressure (Mpa) 31.5
Is the hydraulic crushing pipeline standard?
Oil capacity
Fuel tank (L) 380
Hydraulic oil tank (L) 280
Main body dimensions
Total transport length (mm) 9440
Total transport width (mm) 2809
Total transport height (mm) 3200
Onboard width (mm) 2740

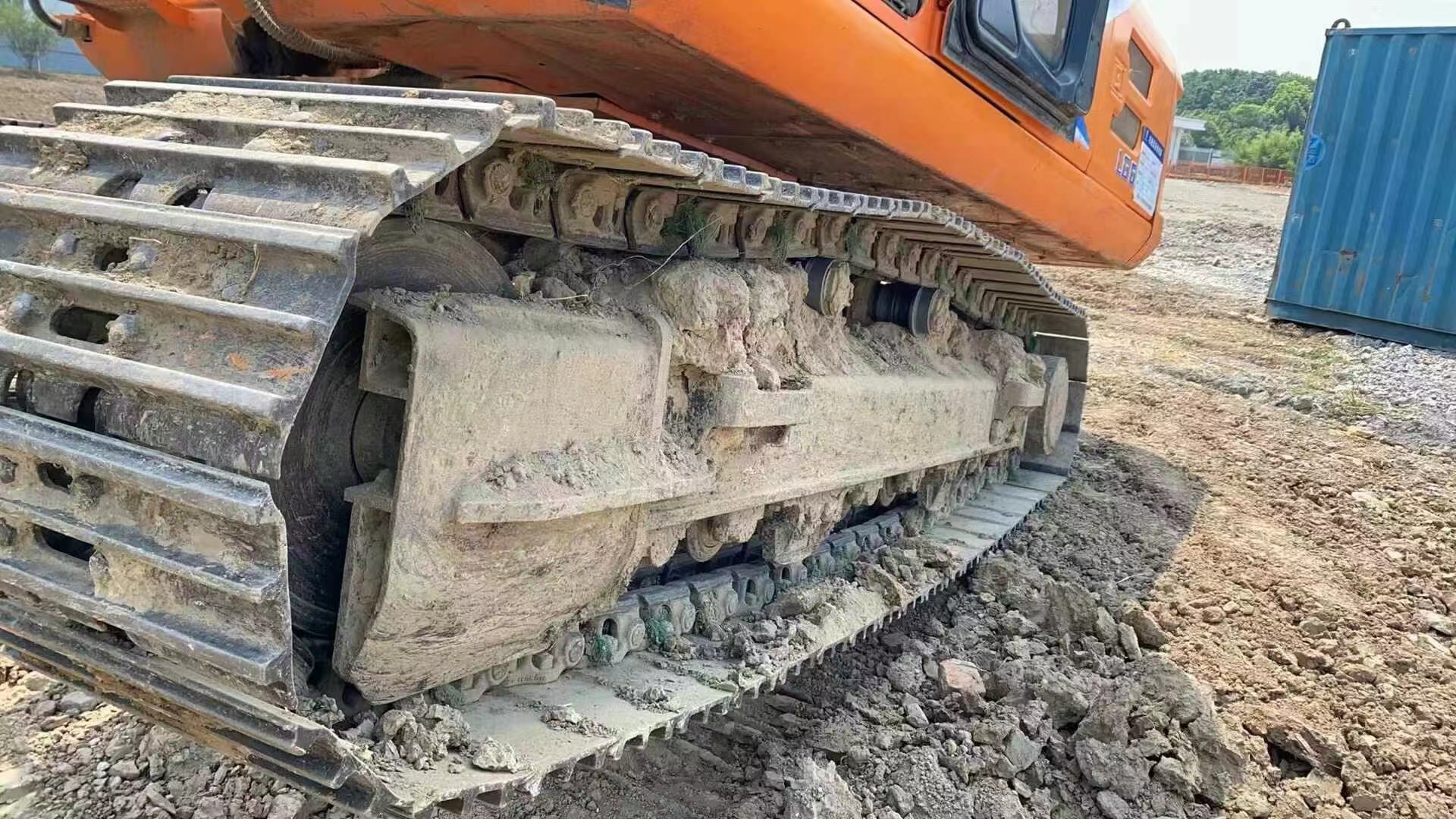

Track ground length (mm) 3462
Track shoe width (mm) 600
Total track width (mm) 2809
Track gauge (mm) 2200
Minimum ground clearance (mm) 478
Counterweight ground clearance (mm) 1009
Rear end turning radius (mm )2750
Operating range
Maximum digging radius (mm) 9900
Maximum digging radius of parking surface (mm) 9750
Maximum digging depth (mm) 6630
Maximum digging height (mm) 9250
Maximum unloading height (mm) 6620
