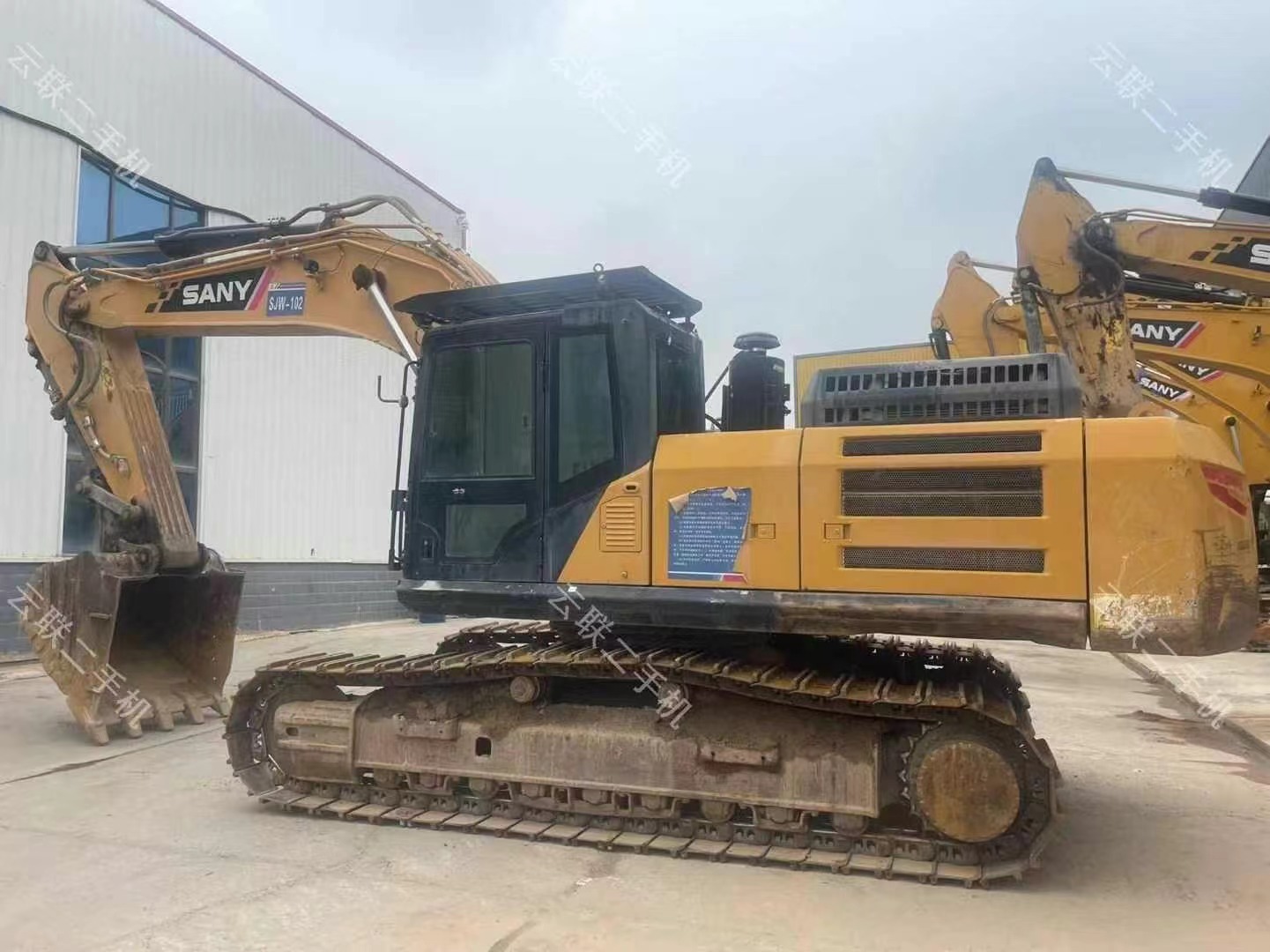

SANY375
SANY375
SANY375
SANY375
SANY375
SANY375

SANY375

SANY375
SANY375
SANY375
SANY375
SANY375

Tonnage (tons) 37
Machine operating weight (kg) 37500
Bucket capacity (m³) 1.7-2.4 (1.9)
Performance
Slewing speed (rpm) 8.8
Travel speed (km/h) 5.5/3.5
Gradability (%) 70
Ground pressure (Kpa) 68.8
Bucket digging force (kN) 235
Arm digging force (kN) 210
Power system

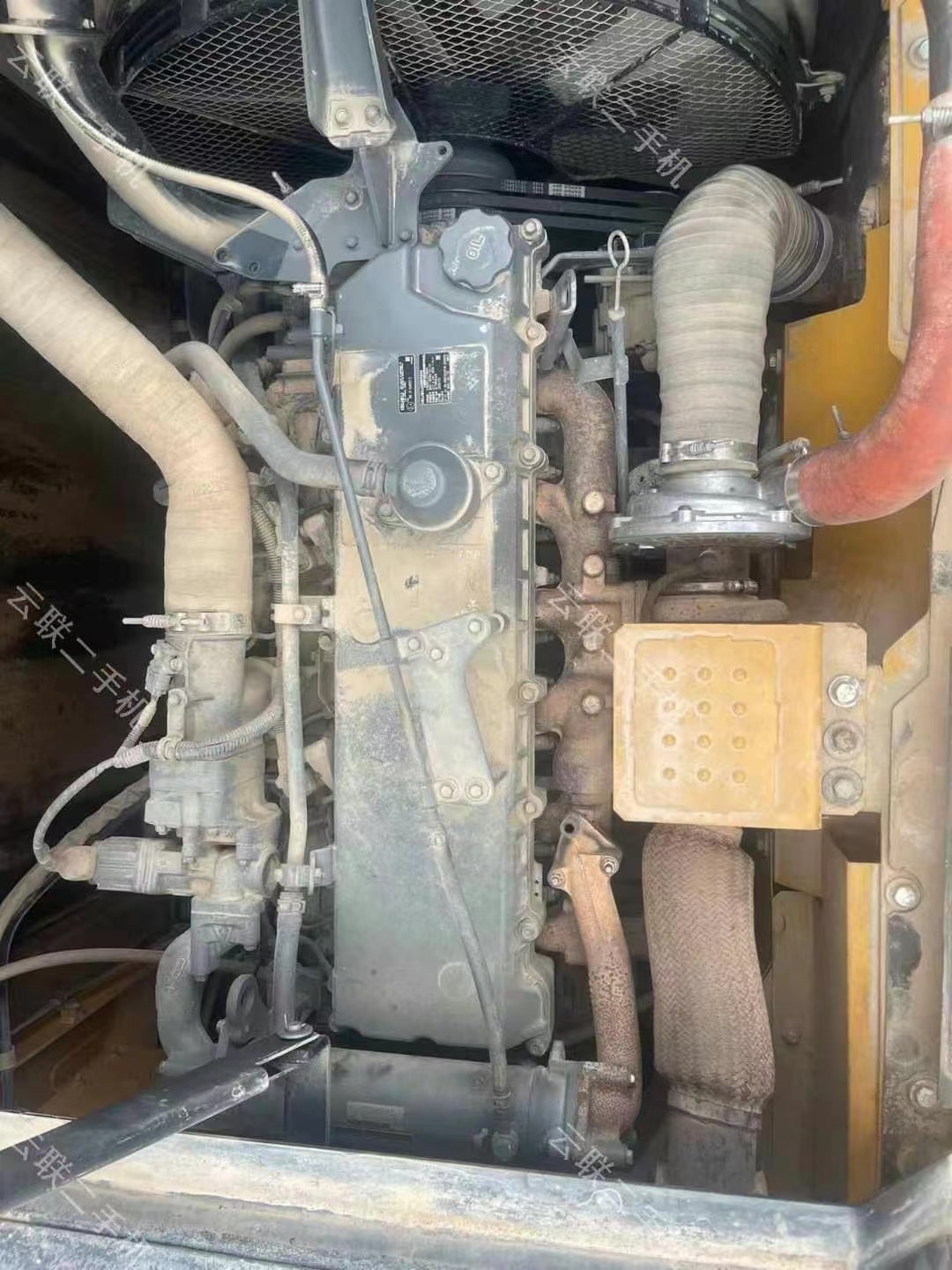

Engine model GH-6HK1XKSC
Rated power (kw/rpm) 212/2000
Maximum torque (N.m) 1080/1500
Displacement (L) 7.79
Cylinder Number (units) 6
Cooling method Water cooling
Working mode Direct injection, 6-cylinder 4-stroke, turbocharged intercooler, water cooling
Oil capacity
Fuel tank (L) 540
Engine oil change volume (L) 36
Main body dimensions
Total length for transportation (mm) 11425
Total width for transportation (mm) 3190
Total height for transportation (mm) 3825
Total height of cab (mm) 3440
Onboard width (mm) 3230
Track ground length (mm) 4140
Total length of track (mm) 5100
Track shoe width (mm) 600
Track gauge (mm) 2590
Minimum ground clearance (mm )550
Minimum turning radius of front working device (mm)4390
Rear end turning radius (mm)3610
Maximum height at minimum turning radius (mm)8930
Number of chain rollers (single side) (pcs)2
Number of track shoes (single side) (pcs)49
Number of supporting rollers (single side) (pcs)9
Operating range
Maximum digging radius (mm)10750
Maximum digging depth (mm)7155
Maximum digging height (mm)9920
Maximum unloading height (mm)7010
Maximum vertical digging depth (mm)5125
