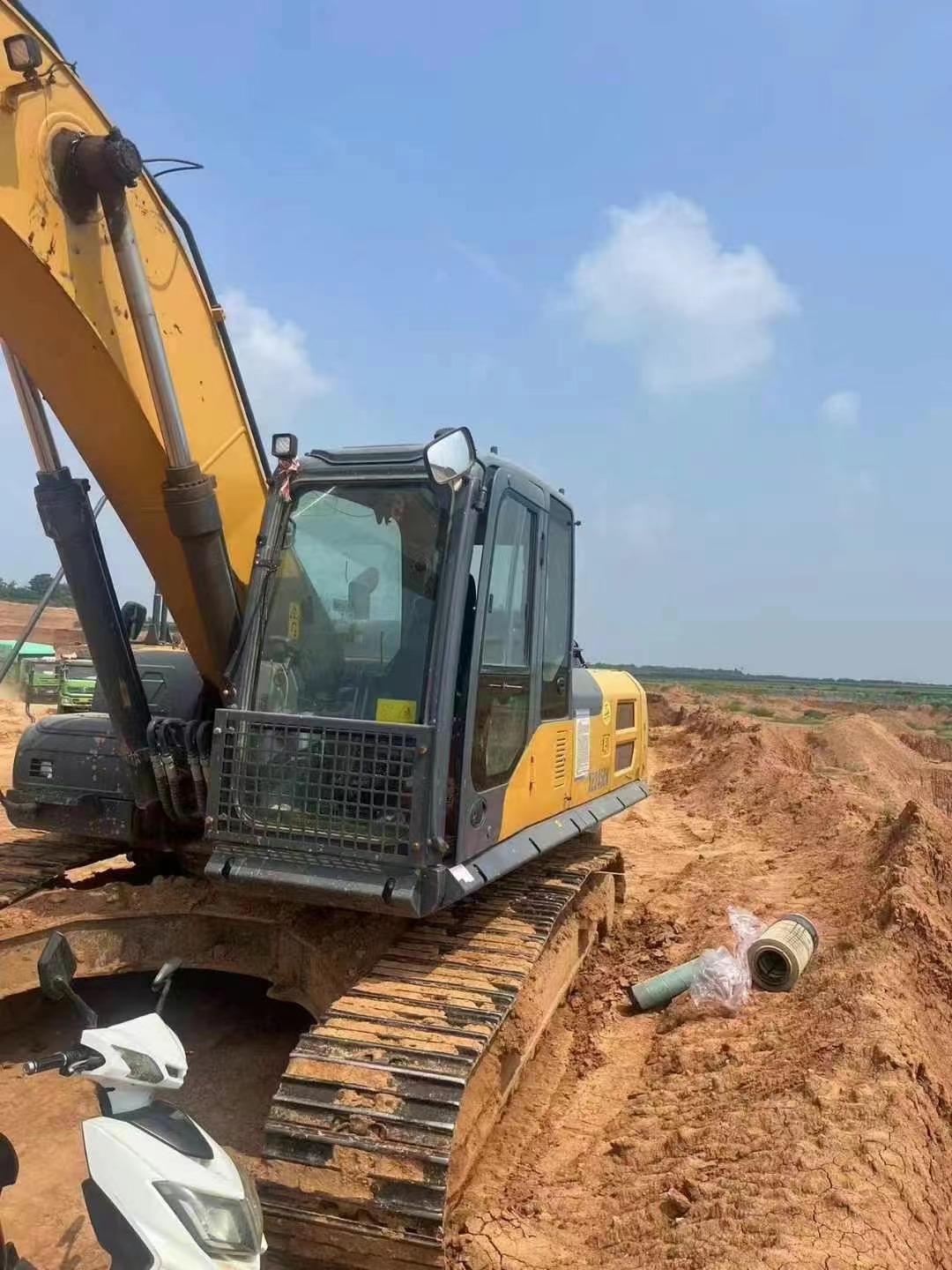

XCMG 245

Tonnage (tons) 24
Machine operating weight (kg) 25500
Bucket capacity (m³) 0.9-1.4
Boom length (mm) 6000
Arm length (mm) 2964
Performance
Slewing speed (rpm) 11.2
Travel speed (km/h) 5.3/3.6
Gradability (%) 35
Ground pressure (Kpa) 56.7
Bucket digging force (kN) 185
Arm digging force (kN) 129
Maximum traction force (kN) 199

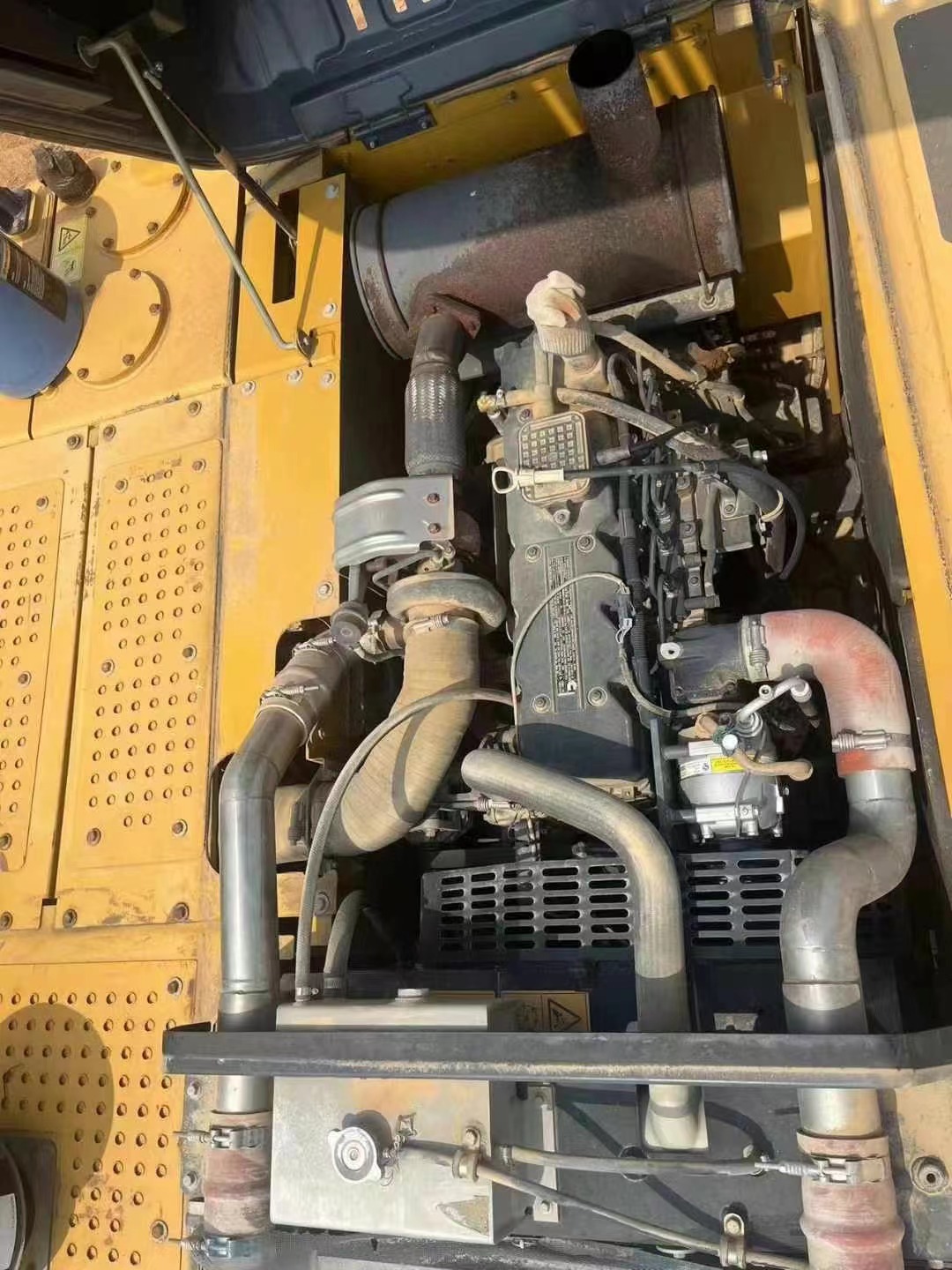

Power system
Engine model QSB7
Rated power (kw/rpm) 150/2 050
Displacement (L) 6.7
Number of cylinders (pieces) 6
Working mode EFI, 4-stroke, turbocharged, air-to-air intercooling
Oil capacity
Fuel tank (L) 400
Hydraulic oil tank (L) 220
Engine oil change volume (L) 19.5
Main body dimensions
Total transport length (mm) 10170
Total transport width (mm) 3190
Total transport height (mm) 3130
Total track length (mm) 4445
Total track width (mm) 3190
Track gauge (mm) 2590
Counterweight ground clearance (mm) 1062
Minimum ground clearance (mm )1062
Minimum turning radius of front working device (mm)3510
Rear end turning radius (mm)2955
Operating range
Maximum digging radius (mm)10240
Maximum digging depth (mm)6972
Maximum digging height (mm)10048
Maximum unloading height (mm)7123
Maximum vertical digging depth (mm)5567
