Power Traditional power
Manufacturer Domestic
Bucket backhoe
Tonnage (tons) 21
Operating weight of the whole machine (kg) 21700
Bucket capacity (m³) 1.0
Performance
Slewing speed (rpm) 11.5
Travel speed (km/h) 5.5/3.3
Bucket digging force (kN) 147
Arm digging force (kN) 105
Maximum traction force (kN) 192
Power system

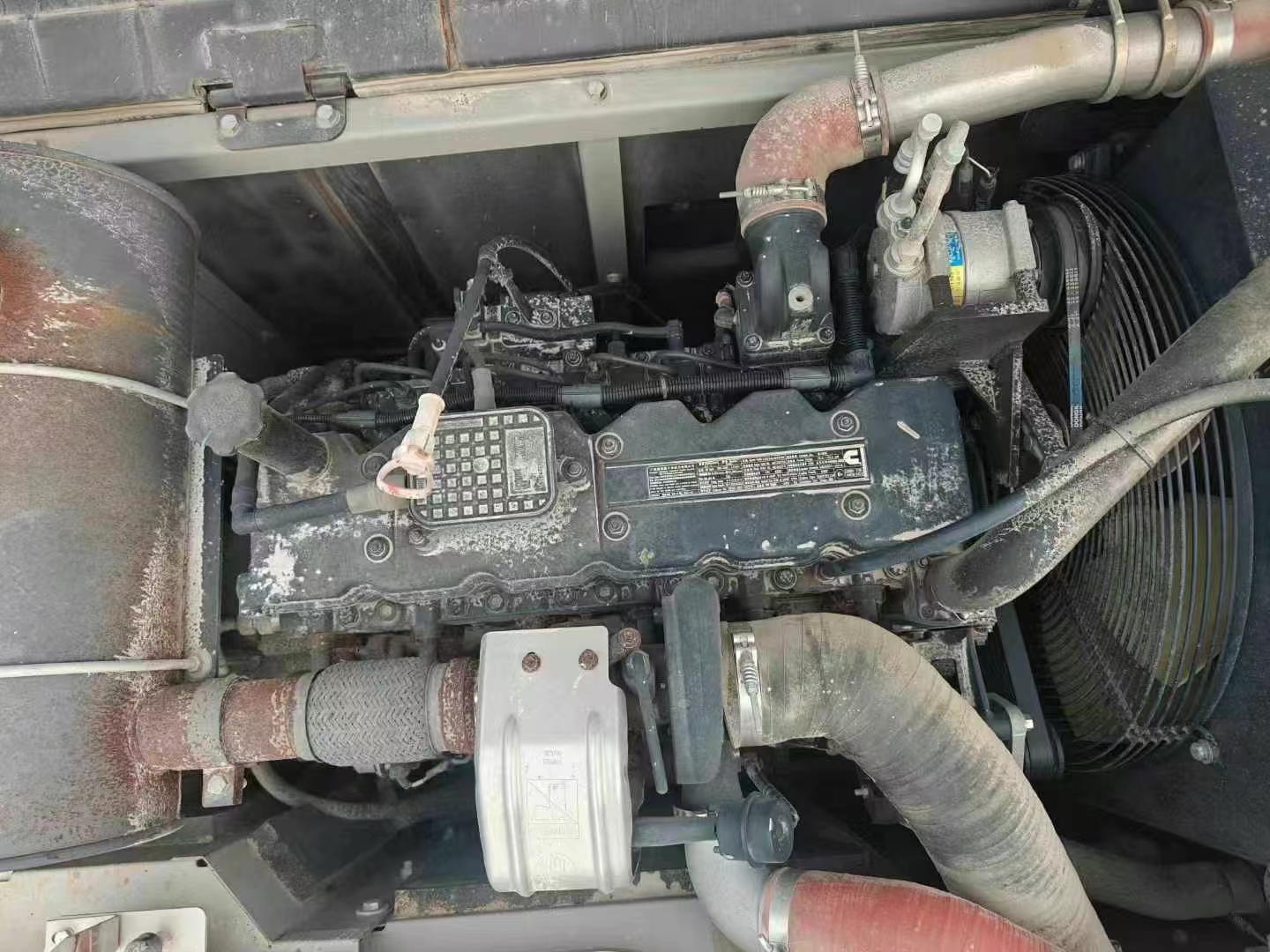

Engine model CUMMINS
Rated power (kw/rpm) 124/2050
Displacement (L) 6.7
Main body size
Total transport length (mm) 9555
Total transport width (mm) 2990
Total transport height (mm) 3085
Track gauge (mm) 2390
Rear end turning radius (mm )2800
Operating range
Maximum digging radius (mm) 9870
Maximum digging radius of parking surface (mm) 9690
Maximum digging depth (mm) 6580
Maximum digging height (mm) 9720
Maximum unloading height (mm) 6895
